FPC RF Rigid Flexible PCB Printed Circuit Board High Durability For Data Storage

Brand Name : TECircuit

Model Number : TEC0181

Certification : UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Place of Origin : China

MOQ : 1pcs

Price : USD 1.99 ~ USD9.99/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 pcs/month

Delivery Time : 5-15 wotk days

Packaging Details : Vacuum package+Carton box

Brand : Shenzhen Tecircuit Electronics Co., Ltd

Product Type : PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core

Item No. : RF0024

Service : PCBA service

Contact Now

Product Images

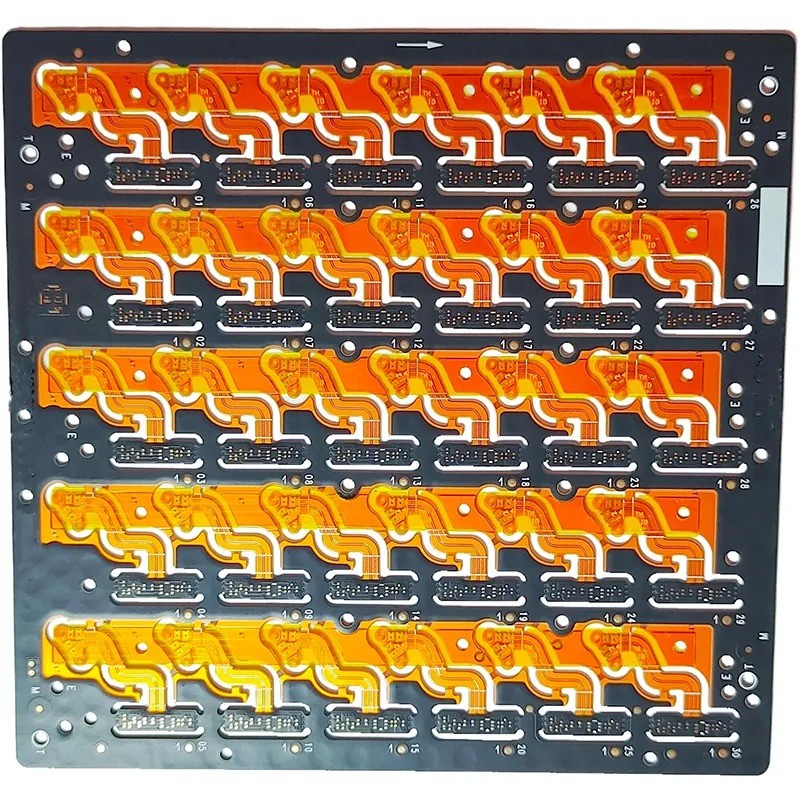

FPC RF Rigid Flexible PCB Printed Circuit Board High Durability For Data Storage

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • Solid State Drives (SSDs):

    • Used to connect NAND flash memory chips and controllers, facilitating high-speed data storage and retrieval.

  • Hard Disk Drives (HDDs):

    • Employed in connecting read/write heads to the drive's control circuitry, optimizing data access and management.

  • Memory Modules:

    • Integrated into RAM modules, connecting memory chips to the motherboard or other components for efficient data processing.

  • External Storage Devices:

    • Used in portable external drives and USB flash drives, ensuring reliable connections between storage media and interfaces.

  • Data Backup Solutions:

    • Employed in systems designed for data backup, connecting various storage elements to facilitate quick data transfer.

  • Cloud Storage Interfaces:

    • Integrated into devices that connect to cloud storage solutions, enabling seamless data synchronization and access.

  • Network Attached Storage (NAS):

    • Used in NAS devices to connect multiple storage drives and facilitate data sharing over networks.

  • Data Center Equipment:

    • Employed in servers and storage arrays within data centers, ensuring reliable connections for high-performance data handling.

  • Industrial Data Loggers:

    • Integrated into devices that collect and store data from sensors in industrial applications, enabling efficient data management.

  • Embedded Systems:

    • Used in embedded devices that require data storage capabilities, connecting memory chips to processors.

Product Features

  1. Flexibility:

    • RFPCBs can be designed to fit into compact and intricate spaces within data storage devices, optimizing layout and design.

  2. Space Efficiency:

    • The rigid-flex design allows for a reduction in overall size while maintaining functionality, crucial for modern storage solutions.

  3. High Signal Integrity:

    • Designed to minimize signal loss and interference, ensuring reliable data transmission and retrieval.

  4. Durability:

    • Built to withstand mechanical stress, vibration, and environmental factors, ensuring long-term reliability in various applications.

  5. Thermal Management:

    • Effective heat dissipation properties help maintain optimal operating temperatures for electronic components in data storage devices.

  6. Customizability:

    • Can be tailored to specific storage device requirements, allowing for unique configurations and integration of components.

  7. Ease of Assembly:

    • Simplifies the manufacturing process, enabling efficient integration into complex data storage systems.

  8. Lightweight:

    • The lightweight nature of RFPCBs contributes to the overall portability of external storage devices.

  9. Resistance to Environmental Factors:

    • Often treated to resist moisture, dust, and chemicals, enhancing durability in different operating environments.

  10. Compliance with Industry Standards:

    • Manufactured to meet relevant data storage and electronic performance standards, ensuring dependable operation in critical applications.

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More

Product Tags:

High Durability Rigid Flexible PCB



OEM Rigid Flexible Printed Circuit Board



Data Storage Rigid Flexible PCB


FPC RF Rigid Flexible PCB Printed Circuit Board High Durability For Data Storage Manufactures
