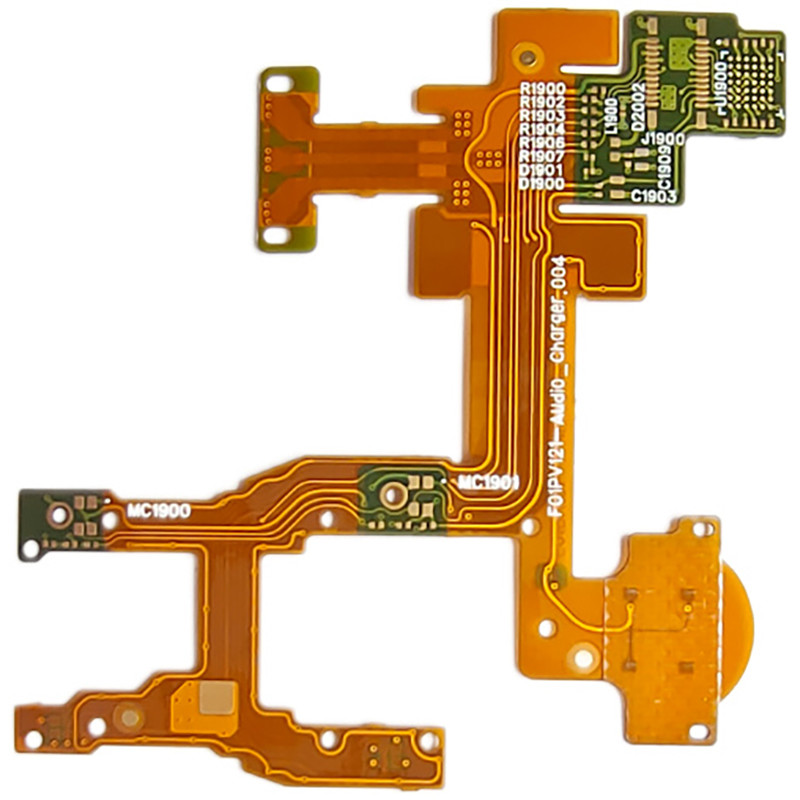

Rigid And Flexible PCB Board Flexible Printed Circuit Immersion Gold Finish

Brand Name : TECircuit

Model Number : TEC0184

Certification : UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W

Place of Origin : China

MOQ : 1pcs

Price : USD 1.99 ~ USD9.99/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 pcs/month

Delivery Time : 5-15 wotk days

Packaging Details : Vacuum package+Carton box

Brand : Shenzhen Tecircuit Electronics Co., Ltd

Product Type : PCB,High frequency board,RIGID PCB,Rigid board,Flexible board,Rigid-Flex PCB,IC-Substrate,Metal Core

Item No. : RF0027

Service : PCBA service

Contact Now

Product Images

Rigid And Flexible PCB Board Flexible Printed Circuit Immersion Gold Finish

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

  • Instrument Clusters:

    • Used to connect various gauges and displays (speedometer, tachometer, fuel gauge) providing essential information to the driver.

  • Multimedia Displays:

    • Employed in infotainment systems, connecting screens that display navigation, audio controls, and other media functions.

  • Control Interfaces:

    • Integrated into dashboard control panels for buttons, knobs, and touchscreens, allowing user interaction with vehicle systems.

  • Climate Control Systems:

    • Used to connect sensors and controls for heating, ventilation, and air conditioning (HVAC) systems, enabling user comfort.

  • Warning and Indicator Lights:

    • Employed in circuits that manage warning lights (check engine, oil pressure) and indicators, ensuring driver awareness of vehicle status.

  • Navigation Systems:

    • Integrated into navigation displays, connecting GPS modules and related components for route guidance and mapping.

  • Communication Interfaces:

    • Used in systems that allow for connectivity with mobile devices via Bluetooth, Wi-Fi, or USB, facilitating hands-free calling and media streaming.

  • Telematics and Connectivity Modules:

    • Employed in telematics systems that provide real-time data for vehicle diagnostics and location tracking.

  • Driver Assistance Features:

    • Integrated into displays that provide information from advanced driver-assistance systems (ADAS), such as lane departure warnings and collision alerts.

  • Customization Features:

    • Used in systems that allow users to customize dashboard displays and settings, enhancing the driving experience.

Product Features

  1. Flexibility:

    • RFPCBs can be shaped to fit the complex geometries of modern dashboards, optimizing space and design.

  2. Space Efficiency:

    • The rigid-flex design allows for compact layouts, reducing the overall size of dashboard electronics.

  3. High Signal Integrity:

    • Designed to minimize signal loss and interference, ensuring reliable operation of sensors and displays.

  4. Durability:

    • Built to withstand the automotive environment, including temperature extremes, humidity, and vibrations.

  5. Thermal Management:

    • Effective heat dissipation properties help maintain optimal operating conditions for electronic components.

  6. Customizability:

    • Can be tailored to the specific needs of different vehicle models and dashboard configurations.

  7. Ease of Assembly:

    • Simplifies the manufacturing and assembly process, enabling efficient integration into complex dashboard systems.

  8. Lightweight:

    • The lightweight nature of RFPCBs contributes to the overall reduction in vehicle weight, which can enhance fuel efficiency.

  9. Resistance to Environmental Factors:

    • Often treated to resist moisture, dust, and chemicals, ensuring reliable performance in various driving conditions.

  10. Compliance with Automotive Standards:

    • Manufactured to meet stringent automotive safety and performance standards, ensuring dependable operation in critical dashboard applications.

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

​Product Description​

Specification:
PCB layers: 1-42layers
PCB materials: CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size: 620mm*1100mm
PCB certificate: RoHS Directive-Compliant
PCB Thickness: 1.6 ±0.1mm
Out Layer Copper Thickness: 0.5-5oz
Inner Layer Copper Thickness: 0.5-4oz
PCB max. board thickness: 6.0mm
Minimum Hole Size: 0.20mm
Minimum Line Width/Space: 3/3mil
Min. S/M Pitch: 0.1mm(4mil)
Plate Thickness and Aperture Ratio : 30:1
Minimum Hole Copper: 20µm
Hole Dia. Tolerance(PTH): ±0.075mm(3mil)
Hole dia. Tolerance(NPTH): ±0.05mm (2mil)
Hole Position Deviation: ±0.05mm (2mil)
Outline Tolerance: ±0.05mm (2mil)
PCB solder mask: Black, white, yellow
PCB surface finished: HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend: White
E-test: 100% AOI, X-ray, Flying probe test.
Outline: Rout and Score/V-cut
Inspection Standard: IPC-A-610CCLASSII
Certificates: UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports: Final Inspection, E-test, Solderability Test, Micro Section and More

Product Tags:

Immersion Gold Finish PCB Board



Immersion Gold FPC Circuit Board


Rigid And Flexible PCB Board Flexible Printed Circuit Immersion Gold Finish Manufactures

Rigid And Flexible PCB Board Flexible Printed Circuit Immersion Gold Finish Images
